1. Name: Capacitor Discharge Stud Welding Internal Threaded
2. Type: IT-CU-M6X16
3. Material: Brass
4. Surface: Natural Color
5. Diameter: Φ8mm
6. Thread: M6 mm
7. Length: 10 - 40 mm
Products > Stud Welding > CD Internal Threaded Stud (IT)
|

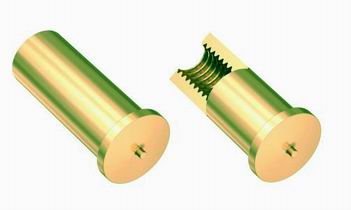

Brass Internal Threaded
Item No.: IT-CU-M6X16 |
Description
- Capacitor Discharge Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
- Capacitor Discharge Studs are available in many different sizes, from a base diameter of a 2 mm up to 12 mm.
- Standard material for CD Studs are: Low Carbon Steel Copper Coating, Stainless Steel, Aluminum Alloy, and Brass.

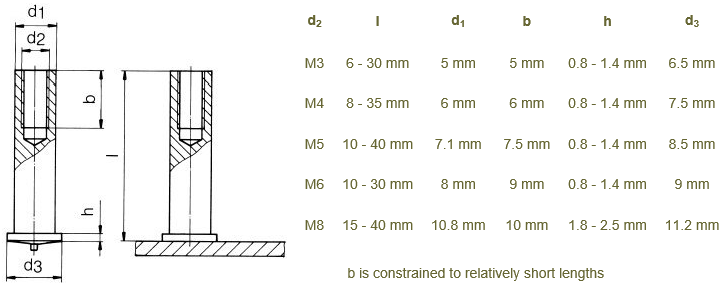

- The stud flange is designed according to EN ISO 13918.
- Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)
