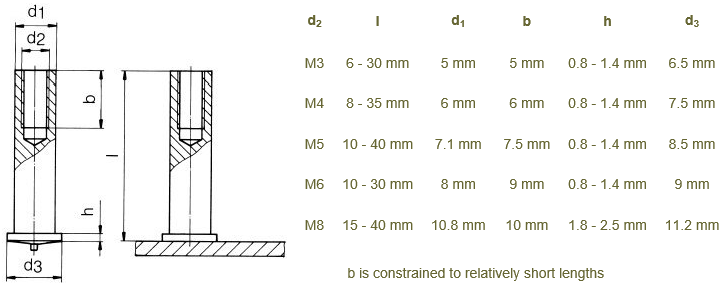

1. Name: Capacitor Discharge Stud Welding Internal Threaded
2. Type: IT-SS-M4X16
3. Material: Stainless Steel
4. Surface: Passivated
5. Diameter: Φ6mm
6. Thread: M4 mm
7. Length: 8 - 35 mm
Products > Stud Welding > CD Internal Threaded Stud (IT)
|

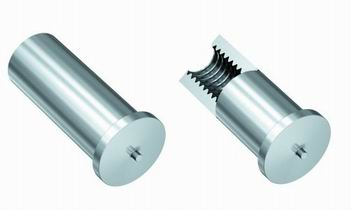

Stainless Internal Threaded
Item No.: IT-SS-M4X20 |
Description
- Capacitor Discharge Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
- Capacitor Discharge Studs are available in many different sizes, from a base diameter of a 2 mm up to 12 mm.
- Standard material for CD Studs are: Low Carbon Steel Copper Coating, Stainless Steel, Aluminum Alloy, and Brass.
- The stud flange is designed according to EN ISO 13918.
- Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)
