1. Name: Capacitor Discharge Stud Welding Threaded Stud
2. Type: PT-S-M3X8
3. Material: Steel
4. Surface: Copper Plated
5. Thread : M3 - M12mm
6. Length: 6 - 50 mm
Products > Stud Welding > CD Threaded Stud (PT)
|
Steel Threaded Stud
Item No.: PT-S-M3X8 |
Description
- Capacitor Discharge Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
- Capacitor Discharge Studs are available in many different sizes, from a base diameter of a 2 mm up to 12 mm.
- Standard material for CD Studs are: Low Carbon Steel Copper Coating, Stainless Steel, Aluminum Alloy, and Brass.

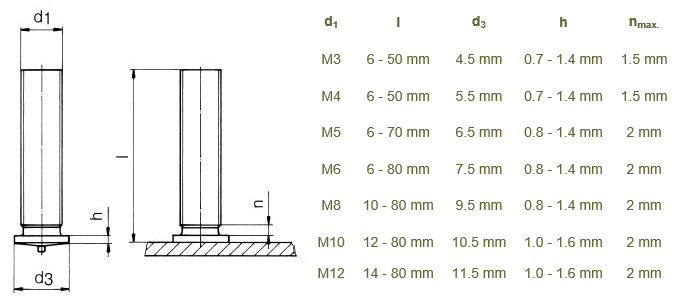

- The stud flange is designed according to EN ISO 13918.
- Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)
